SMC18M(pressure sensor module,-voltage output)

Product Name:

SMC18M(pressure sensor module,-voltage output)

Product Attribute:

Type:Level

Application:

Auto

Product Description:

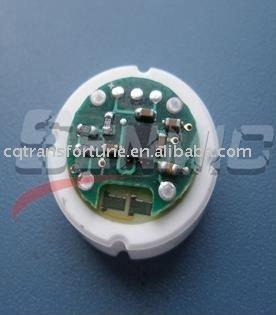

SMC18M-A4 Series the pressure sensor module of two-wire current output, used pressure sensors of SMC1800 series as sensitive components and conditioning chips developed by our own company, then can compensation sensor offset, sensitivity, temperature drift and nonlinear digital. It had a high level of integration, small size, high accuracy, consistency, and strong anti-jamming capability, fast response, low power consumption, such wide temperature range of outstanding features.

SMC18M-A4 Series transmission pressure module, in fact, this is no high-quality casing pressure transmitter corrent.

Our company provide Packaging structural designs and all technical support.

The main technical indicators :
1.Appearance Dimensions: φ18.0×6.35 mm
2.Work voltage:8~30VDC
3.The output method:4~20 mA two-wire
4.Integrated Precision: 0.5 % 1 % (With temperature and zero drift)
5.Work temperature:-20~85°C -40~125°C
