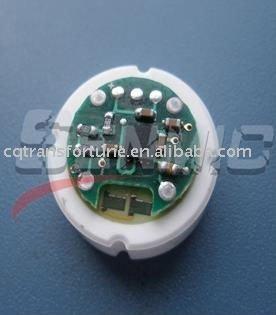

SMC18M(pressure sensor module,-voltage output)
Voltage:0.5-4.5v
Auto
2.Range scope: 5-100 bar3. Supply voltage: 5VDC,7-30VDC(Wide-voltage type)4. The output method : Output voltage,0.5~4.5V Standard signal output 5. Integrated Precision : 0.5 % 1 % (With temperature and zero drift )6. Work temperature: -20~85°C -40~125°C 7. Response time : 1mS(Typical values )8. Work current: 3~3.5mA[Note]: (1) SMC18B/M-V5 the proportion of pure analog voltage output module, anti-electromagnetic interference capability, output stability, No jumping, power supply for the 5V standard voltage power supply.(2) SMC18B/M-V51 for the band to the protection of the proportion of positive and negative voltage output module (that is, based on the modified V5); Positive supply voltage of 16V, reverse supply voltage of 13V, back to 5V power supply can be used normally.(3) SMC18B/M-V52-resistant high-voltage proportional-voltage output module (that is, on the basis of improved V5); Forward Plus 30V supply voltage, reverse power supply voltage of 13V, back to 5V power supply can be used normally.(4) SMC18B/M-V6 standard output for a wide-pressure mode, when the supply voltage in the range of 7 ~ 30VDC, its output is 0.5 ~ 4.5V Constant
