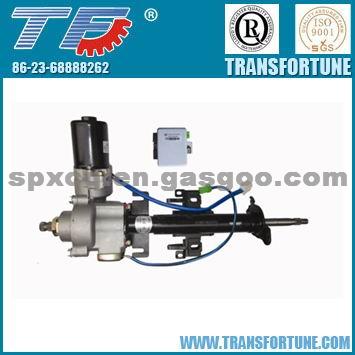

Brand New Electric Power Steering(EPS) For HAFEI DABAWANG POWER STEERING

Brand New Electric Power Steering(EPS) For HAFEI DABAWANG POWER STEERING
Brand New Electric Power Steering(EPS) For HAFEI DABAWANG POWER STEERING
Minimum Order:

1PCS

Samples:

Charge

Payment Terms:

L/C,D/A,T/T,M/T,D/D,CASH,D/P

Delivery Port:

NINGBO

Delivery Time:

35-45 DAYS

Market Type:

After Market

Packing:

STD EXPORT PACKAGE

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Brand New Electric Power Steering(EPS) For HAFEI DABAWANG POWER STEERING

Product Attribute:

Application:

HAFEI DABAWANG

Product Description:



EPS FOR HAFEI DABAWANG



SYSTEM PARAMETERS
INPUT TORQUE 0-7Nm
OUTPUT TORQUE 0-36Nm
ASSIST MOTOR VOLT 12V
  CURRENT 30A
  POWER 170W
ECU VOLT 12V
  CURRENT 30A

Our factory had researched and manufactured different high quality electric power steering systems for automobiles. The products include EPSof gasoline vehicle and EPS of electric vehicle. According to ATV/UTV, the water proof EPS system is manufactured. The EPS system can meet the mini car, intermediate car and electric vehicle requirements. The ECU controller includes the series of current from 30A to 80A and the voltage 12V/24V. A full waterproof controller is also researched to meet different requirements. In order to better serve the automotive industry, the company can provide technology application and integration of the overall solution for users based on the automobile electrical power steering system.Applied vehicles.jpg


THE ADVANTAGE OF EPS:



1.Assit with vehicle speed, Assist power is adjusted according to whole vehicle speed. Flexible steering in low speed and heavy steering in high speed.



2. Fuel economy. EPS does not work while no steering. Compared with the hydraulic steering system, fuel saving 5%.



3. Over temperature protection. The motor current will reduce automatically.



4.High reliability. System fault will detect in real time. Assist mode will be changed to mechanical steering mode while fault.



5.Long life. Using the new contactless torque sensor, service life will be improved.



Advantage of ECU:


A unique high damping control algorithm

The ECU parameters are adjusted on-line

Power assist steering in whole vehicle speed

High integration, high reliability

CAN bus control

Automatic return function with steer angle sensor

Brand New Electric Power Steering(EPS) For HAFEI DABAWANG POWER STEERING
Brand New Electric Power Steering(EPS) For HAFEI DABAWANG POWER STEERING
