Product Name:

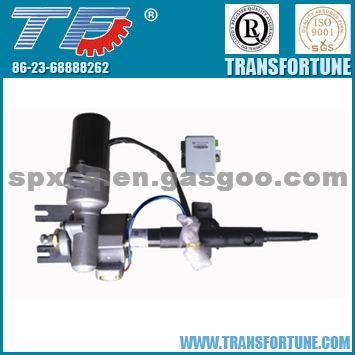

Brand New Electric Power Steering(EPS) For LOWER SPEED EV
Product Attribute:
Application:
LOW SPEED EV
Product Description:
Brand New Electric power steering(EPS) for LOWER SPEED EV
1.INPUT TORQUE :0-7Nm;OUT TORQUE:0-36Nm
2.Assist motor:12V,30A,170W
3.ECU:12V,30A
The advantage of OUR EPS ASSEMBLY:
THE ADVANTAGE OF EPS:
1.Assit with vehicle speed, Assist power is adjusted according to whole vehicle speed. Flexible steering in low speed and heavy steering in high speed.
2. Fuel economy. EPS does not work while no steering. Compared with the hydraulic steering system, fuel saving 5%.
3. Over temperature protection. The motor current will reduce automatically.
4.High reliability. System fault will detect in real time. Assist mode will be changed to mechanical steering mode while fault.
5.Long life. Using the new contactless torque sensor, service life will be improved.
Advantage of ECU:
A unique high damping control algorithm
The ECU parameters are adjusted on-line
Power assist steering in whole vehicle speed
High integration, high reliability
CAN bus control
Automatic return function with steer angle sensor
Special controller temperature recongnition and protection function
Fault detection on line
Automotive grade special chip
Our factory had researched and manufactured different high quality electric power steering systems for automobiles. The products include EPS of gasoline vehicle and EPS of electric vehicle. According to ATV/UTV, the water proof EPS system is manufactured. The EPS system can meet the mini car, intermediate car and electric vehicle requirements. The ECU controller includes the series of current from 30A to 80A and the voltage 12V/24V. A full waterproof controller is also researched to meet different requirements. In order to better serve the automotive industry, the company can provide technology application and integration of the overall solution for users based on the automobile electrical power steering system.
We are a leading manufacturer and exporterf auto parts in China for more than 10 years. We produce and supply a wide range of electric power steerings(EPS) with good quality and the competitive price. Our main customers are coming from North America, South America, Australia, Europe, South Africa and so on, giving us a good reputation.
